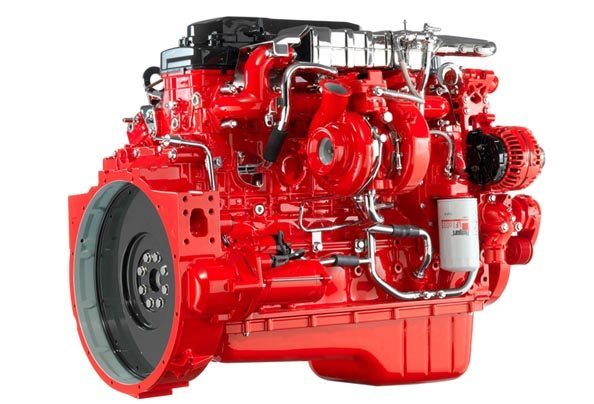

Cummins engine 6CTAA8.3 Spare Parts
| 500 Running hours spare parts | |||
| Item | Part # | Part Name | QTY |
| 1 | LF9009 | CARTRIDGE,LUB | 3 |
| 2 | 1117N-010 | FILTER,FUEL | 3 |
| 3 | 1125N-010 | FILTER,FUEL | 3 |
| 4 | WF2073 | RESISTOR,CORROTION | 3 |
| 5 | C3905449 | GASKET,VALVE COVER | 18 |
| 6 | C3911620 | BELT,V RIBBED | 3 |
| 7 | KW6CT | CLEANER，AIR | 3 |
| 1000 Running hours Spare parts | |||
| Item | Part # | Part Name | Qty |
| 1 | LF9009 | CARTRIDGE,LUB | 5 |
| 2 | 1117N-010 | FILTER,FUEL | 5 |
| 3 | 1125N-010 | FILTER,FUEL | 5 |
| 4 | WF2073 | RESISTOR,CORROTION | 5 |
| 5 | C3905449 | GASKET,VALVE COVER | 60 |
| 6 | C3911620 | BELT,V RIBBED | 5 |
| 7 | KW6CT | CLEANER，AIR | 5 |
| 8 | HIX | Repair the bag in pressurization device | 1 |
| 9 | C3926798 | BEARING,CRANKSHAFT THRUS | 1 |
| 10 | C3916840 | BEARING,MAIN | 6 |
| 11 | C3901590 | BEARING,MAIN | 7 |
| 12 | C3901430 | BEARING,CONNECTING ROD | 12 |
| 13 | P270 | nozzle tip | 6 |
| 14 | 17.0146 | MOTOR,STARTING， SET | 1 |
| 15 | 3940632 | THERMOSTAT | 1 |
| 16 | 34.002 | set,engine gskt | 1 |
| 17 | 3846N-010-B2 | SENSOR,OIL PRESSURE | 1 |
| 18 | 3845N05-010 | SENSOR,TEMPERATURE | 1 |
| 19 | 3834N-010 | SENSOR,SPEED | 1 |
| 20 | SAY120PB202 | set,pump engine gskt | 1 |
| 3000 Running hours Spare parts | |||
| Item | Part # | Part Name | QTY |
| 1 | LF9009 | CARTRIDGE,LUB | 15 |
| 2 | 1117N-010 | FILTER,FUEL | 15 |
| 3 | 1125N-010 | FILTER,FUEL | 15 |
| 4 | WF2073 | RESISTOR,CORROTION | 15 |
| 5 | C3905449 | GASKET,VALVE COVER | 90 |
| 6 | C3911620 | BELT,V RIBBED | 15 |
| 7 | AF1811 | CLEANER，AIR | 15 |
| 8 | HIX | Repair the bag in pressurization device | 1 |
| 9 | C3926798 | BEARING,CRANKSHAFT THRUS | 1 |
| 10 | C3916840 | BEARING,MAIN | 6 |
| 11 | C3901590 | BEARING,MAIN | 7 |
| 12 | C3901430 | BEARING,CONNECTING ROD | 12 |
| 13 | 3931262 | INJECTOR | 6 |
| 14 | P270 | nozzle tip | 6 |
| 15 | 17.0146 | MOTOR,STARTING， SET | 1 |
| 16 | 3940632 | THERMOSTAT | 1 |
| 17 | 34.002 | set,engine gskt | 1 |
| 18 | 3846N-010-B2 | SENSOR,OIL PRESSURE | 1 |
| 19 | C3979176 | SENSOR,TEMPERATURE | 1 |
| 20 | 3834N-010 | SENSOR,SPEED | 1 |
| 23 | SAY120PB202 | set,pump engine gskt | 1 |
| 24 | C3924492 | VALVE,INTAKE | 6 |
| 25 | C3921444 | VALVE,EXHAUST | 6 |
| 26 | C3415661 | PUMP,FUEL TRANSFER | 1 |
| 27 | C3939258 | GASKET,COVER | 1 |
| 28 | C3914310 | GASKET,THM HOUSING COVER | 1 |
| 29 | C3415537 | MOTOR,STARTING | 1 |
| 30 | C3415691 | ALTERNATOR | 1 |
| 31 | 3916302 | RELAY,STARTING | 1 |
| 32 | C3966841 | PUMP,WATER | 1 |
| 33 | C3902089 | SEAL,RECTANGULAR RING | 1 |
| 34 | C3918175 | CORE,COOLER | 1 |
| 35 | C3918174 | GASKET,OIL COOLER CORE | 1 |
| 36 | C3929011 | WASHER,SEALING | 1 |
| 37 | 3938267 | GASKET,CYLINDER HEAD | 1 |
| 38 | C3922900 | TENSIONER ,BELT | 1 |
| 39 | C4050195 | TURBOCHARGER | 1 |
| 40 | C4940749 | PUMP,FUEL INJECTOR | 1 |
| 41 | 3926963 | PISTON, ENGINE | 6 |
| 42 | 3802429 | piston ring | 6 |
| 43 | C3934046 | PIN,PISTON | 12 |
| 44 | C3920692 | RING,RETAINING | 12 |
| 45 | C3948095 | LINER，CYLINDER | 6 |
| 46 | C3901383 | ROD,ENGINE CONNECTING | 2 |
| 47 | C3905194 | ROD,PUSH | 8 |
| 48 | C3931623 | TAPPET,VALVE | 8 |
